46" Samsung Digital Video Wall Display Monitors With 3.5mm Bezel

Product Categories
Shenzhen Boyou Technology Co., LTD.
Contact Now

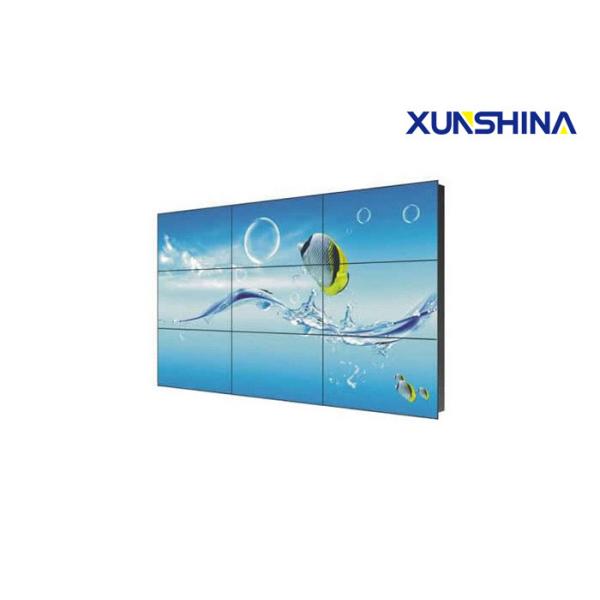

46" Samsung Digital Video Wall Display Monitors With 3.5mm Bezel

  • 1
  • 2

Brand Name : XUNSHINA

Model Number : XS460-4600HD-SNL3

Certification : CE/ROHS/FCC

Place of Origin : China

MOQ : 4pcs

Payment Terms : T/T, L/C, Western Union

Supply Ability : 3000pcs per month

Delivery Time : 3-7 working days after payment

Packaging Details : Inner package: honeycomb carton with EPE foam full covering, Outer package: 4 in 1 plywood case

Bezel Width : 3.5mm (in 2 screens)

Brightness : 500 cd per square meter

Remote Control : RS232

System life : > 60,000 hours

Product Name : LCD Video Wall

Display Area : 1018.08×572.67

Contact Now

46" Samsung Digital Advertising Multiple Screens Video Wall with 3.5mm Bezel

Description of lcd video wall
1.Through RS232 serial port to realize the remote control function; rapid response identification technology, to ensure that the video will play smoothly and pictures show without distortion;

2.Open underlying communication protocol, users can flexibly use third-party control system or prepare software to construct large screen

3.Diversification of the display mode


Specifications

Model No. XS460-4600HD-SNL3

LCD

 Size 46" Samsung panel
Resolution 1920(H)x1080(V)
Pixel pitch 0.53025(H)x0.53025(V)
Backlight LED
Brightness(typical) 500cd/m²
Contrast 3000 : 1
Viewing angel (H/V) 178° / 178°
Color depth 16.7M
Response time <8ms
Display area 1018.08(H)×572.67(V)
Bezel 3.5mm

Interface

 CVBS In / Out (BNC ) 1/1
VGA In / Out 1/0
DVI In / Out 1/0
HDMI In/Out 1/0
DEBUG(USB) 1/0
Control IR remote control Yes
RS-232 In/Out 1/2

Physical parameter

 Dimension 1021.98mm(W) x576.57mm(H) x121.7mm(D)
Frame color Black
Frame material Metal
Net weight 18.6Kg

Power

 Power consumption ≦190W
Standby <1W
Power supply AC 100V-240V, 50/60Hz,Universal,±10%

Environment

 Operating humidity 20-90% RH(no condensation)
Storage humidity 10-90% RH (no condensation)
Operating temperature 0 ~ 50° C / 32 ~ 122° F
Storage temperature -20 ~ 60° C / -4 ~ 140° F

Accessory

 Standard accessories Power cable, User manual, Warranty card, Quality certificate
Optional accessories Wall mounted brackets, floor stand brackets, cabinet
*design and specifications are subject to changes without prior notice

Applications

1.Education and Conference System
2.Safety Monitoring System of Mining and Energy Industry
3.Commercial Industry
Used in the display terminal of commercial industry, such as advertising, media, product presentations
4.Financial Industry
Used in the information display terminal of financial industry, such as stock and security market. .
5.Transportation Industry
Used in the information display terminal of transportation industry, such as airports, ports, metro, highway.
6.Management and Control System
Used in the display terminal of management and control system such as fire-fighting, meteorology, maritime, food prevention, transportation hub


Product Tags:

lcd video wall display



video wall display monitors


Cheap 46&quot; Samsung Digital Video Wall Display Monitors With 3.5mm Bezel for sale

46" Samsung Digital Video Wall Display Monitors With 3.5mm Bezel Images
